Brand: ZLINE Kitchen and Bath
Dimensions:
- 8654RG-30: 30 in. W x 23.75 in. D x 16 in. H
- 8654RG-36: 36 in. W x 23.75 in. D x 16 in. H
- 8654RG-42: 42 in. W x 23.75 in. D x 16 in. H
- 8654RG-48: 48 in. W x 23.75 in. D x 16 in. H
Chimney: 13.25" W x 11.75" D x 35.5" H (cut to fit)
Airflow (Q/L/M/H): 280/460/670/700
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 30/41/49/52 (Decibles)
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: DuraSnow® Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Model No. 8654RG-30, 8654RG-36, 8654RG-42, 8654RG-48
UPC:
- 8654RG-30: 812316039182
- 8654RG-36: 812316039199
- 8654RG-42: 812316039205
- 8654RG-48: 812316039212
Certifications: ETL Listed
Why DuraSnow®?
- Fingerprint resistant
- Non-directional finish
- Outdoor-approved 304 grade stainless steel
Range Hood Decibel Levels

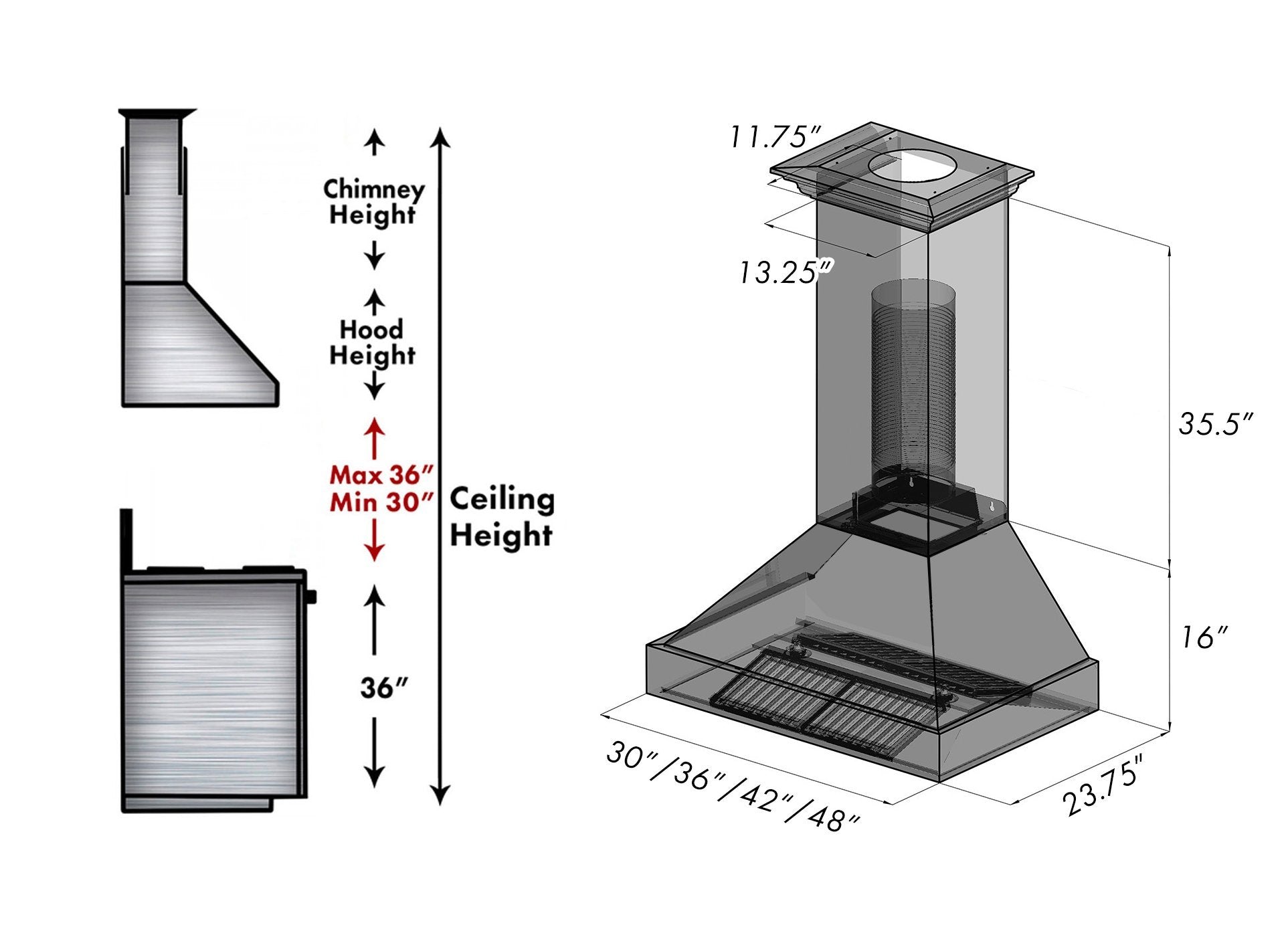

Chimney Sizing
ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
| Name | Definition | Category | Are We Compliant? |
| CSA General | Testing and Certification Body | Electric | Yes |
| ETL Intertek | Testing and Certification Body | Safety | Yes |
| CSA 22.2. No. 61-08. | CSA Standard Household Cooking Ranges | Electric | Yes |
| UL Listed | Safety | Yes | |
| CA Prop 65 (CEC). | Safe Drinking Water and Toxic Enforcement Act | Water | Yes |
