Specifications:
Brand: ZLINE Kitchen and Bath
Dimensions:
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 20/29/34/41 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: Oil-Rubbed Bronze Finish
Warranty: 3 Year Parts Warranty
Features:

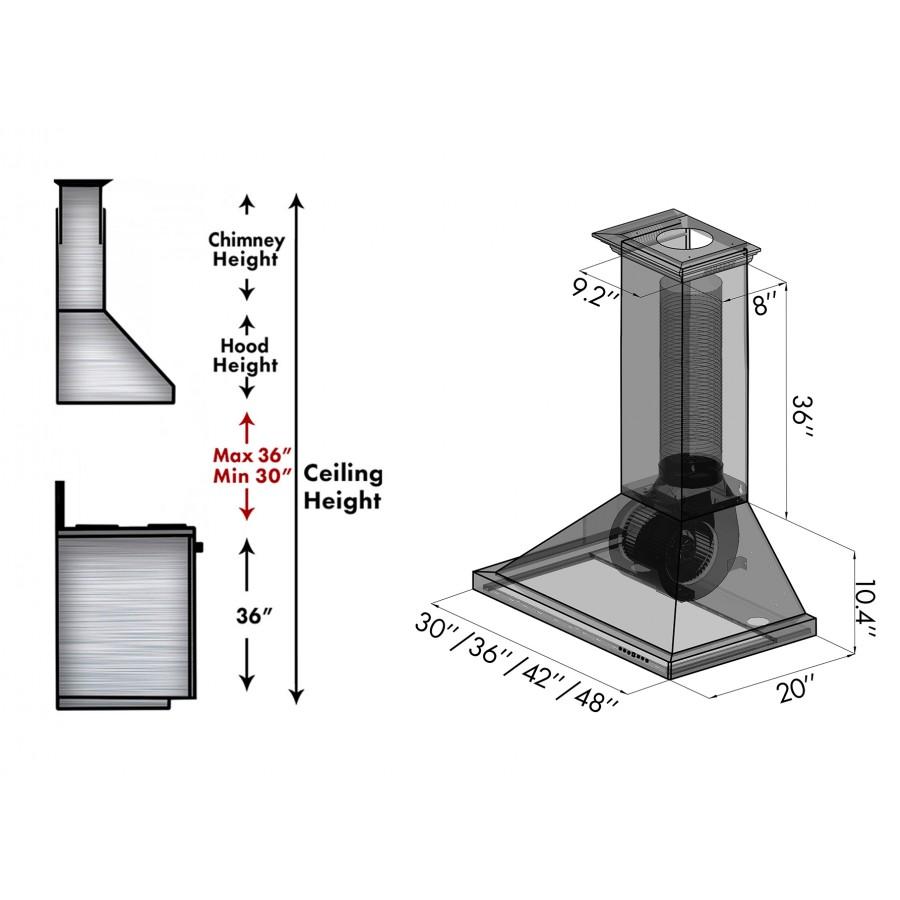

Dimensions:
- 8KBB-30: 30" W x 17.7" D x 10.5" H
- 8KBB-36: 36" W x 19.7" D x 10.5" H
- 8KBB-42: 42" W x 19.7" D x 10.5" H
- 8KBB-48: 48" W x 19.7" D x 10.5" H
-
9.2" W x 8.0" D x 36" H - Fits ceilings up to 9.5 ft. Must custom cut.
-
Includes Crown Molding. Vented Crown Molding available for Ductless solution.
- 6 ft. Chimney Extension available for ceilings up to 12.5 ft.
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 20/29/34/41 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: Oil-Rubbed Bronze Finish
Warranty: 3 Year Parts Warranty
Features:
- Model No. 8KBB-30, 8KBB-36, 8KBB-42, 8KBB-48
- 8KBB-30: 814118022386
- 8KBB-36: 814118022058
- 8KBB-42: 814118022409
- 8KBB-48: 814118022393
| Name | Definition | Category | Are We Compliant? |
| CSA General | Testing and Certification Body | Electric | Yes |
| ETL Intertek | Testing and Certification Body | Safety | Yes |
| CSA 22.2. No. 61-08. | CSA Standard Household Cooking Ranges | Electric | Yes |
| UL Listed | Safety | Yes | |
| CA Prop 65 (CEC). | Safe Drinking Water and Toxic Enforcement Act | Water | Yes |
