Chose a size: |

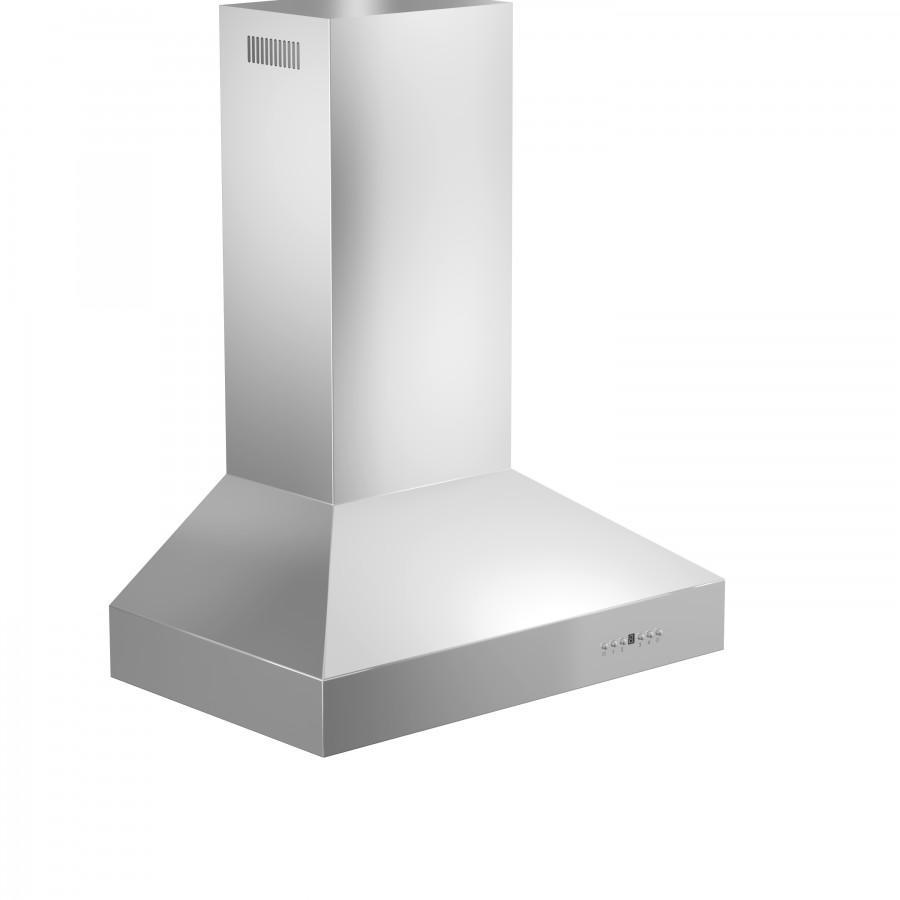

Product Specifications
Brand: ZLINE Kitchen and Bath
Dimensions
• 697-RD-30: 30" W x 27.5" D x 16.375" H
• 697-RD-36: 36" W x 27.5" D x 16.375" H
• 697-RD-42: 42" W x 27.5" D x 16.375" H
• 697-RD-48: 48" W x 27.5" D x 16.375" H
Chimney: 13.5" W x 11.75" D x 16" H (x2) (Telescoping)\
Chimney Short Kit and Extension(s) Available:
Short Kit (2-12") ~7-8 ft. Ceilings
1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size: 8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H): 280/460/670/700
Lighting: LED Lights
Noise Level: 30/41/49/52 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Material:
21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Range Hood Decibel Levels

Name | Definition | Category |
Are We Compliant?
|
CSA General | Testing and Certification Body | Electric | Yes |
ETL Intertek | Testing and Certification Body | Safety | Yes |
CSA 22.2. No. 61-08. | CSA Standard Household Cooking Ranges | Electric | Yes |
UL Listed | Safety | Yes | |
CA Prop 65 (CEC). | Safe Drinking Water and Toxic Enforcement Act | Water | Yes |
