Chose a size: |
Brand: ZLINE Kitchen and Bath
Dimensions: 30" W x 17.7" D x 10.5" H
Venting Size:
- 8" Outlet
Airflow (Q/L/M/H): 280/460/670/700
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 30/41/49/52 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Model No. 8654ORB
UPC:
- 8654ORB-30 - 810021143514
- 8654ORB-36 - 810021143545
Certifications: ETL Listed and ADA Compliant
Why DuraSnow®?
- Fingerprint resistant
- Non-directional finish
- Outdoor-approved 304 grade stainless steel

Range Hood Decibel Levels

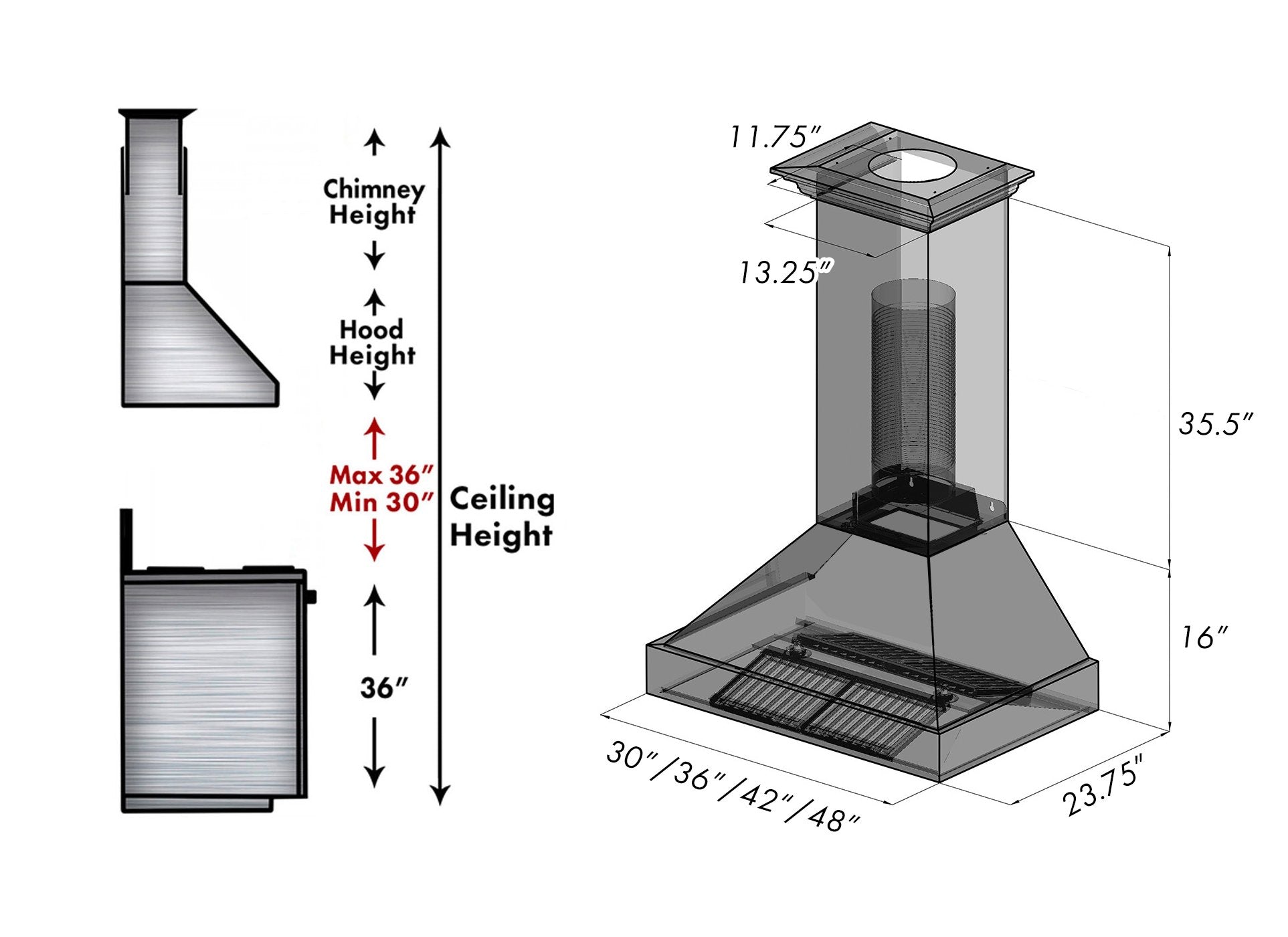

Chimney Sizing
ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
Name | Definition | Category | Are We Compliant? |
CSA General | Testing and Certification Body | Electric | Yes |
ETL Intertek | Testing and Certification Body | Safety | Yes |
CSA 22.2. No. 61-08. | CSA Standard Household Cooking Ranges | Electric | Yes |
UL Listed | Safety | Yes | |
CA Prop 65 (CEC). | Safe Drinking Water and Toxic Enforcement Act | Water | Yes |
