Dimensions: 30" W x 17.7" D x 10.5" H
Chimney:
- 9.2" W x 8" D x 16" H (x2) (Telescoping)
- Chimney Short Kit and Extension(s) Available:
- Short Kit (2-12") ~7-8 ft. Ceilings
- 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
- 2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size:
- 6" Outlet (Transition piece with backdraft damper to round ducting included).
- Charcoal filters (not included) available for ductless/ recirculating options.
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 30/49/52 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 3 Speeds

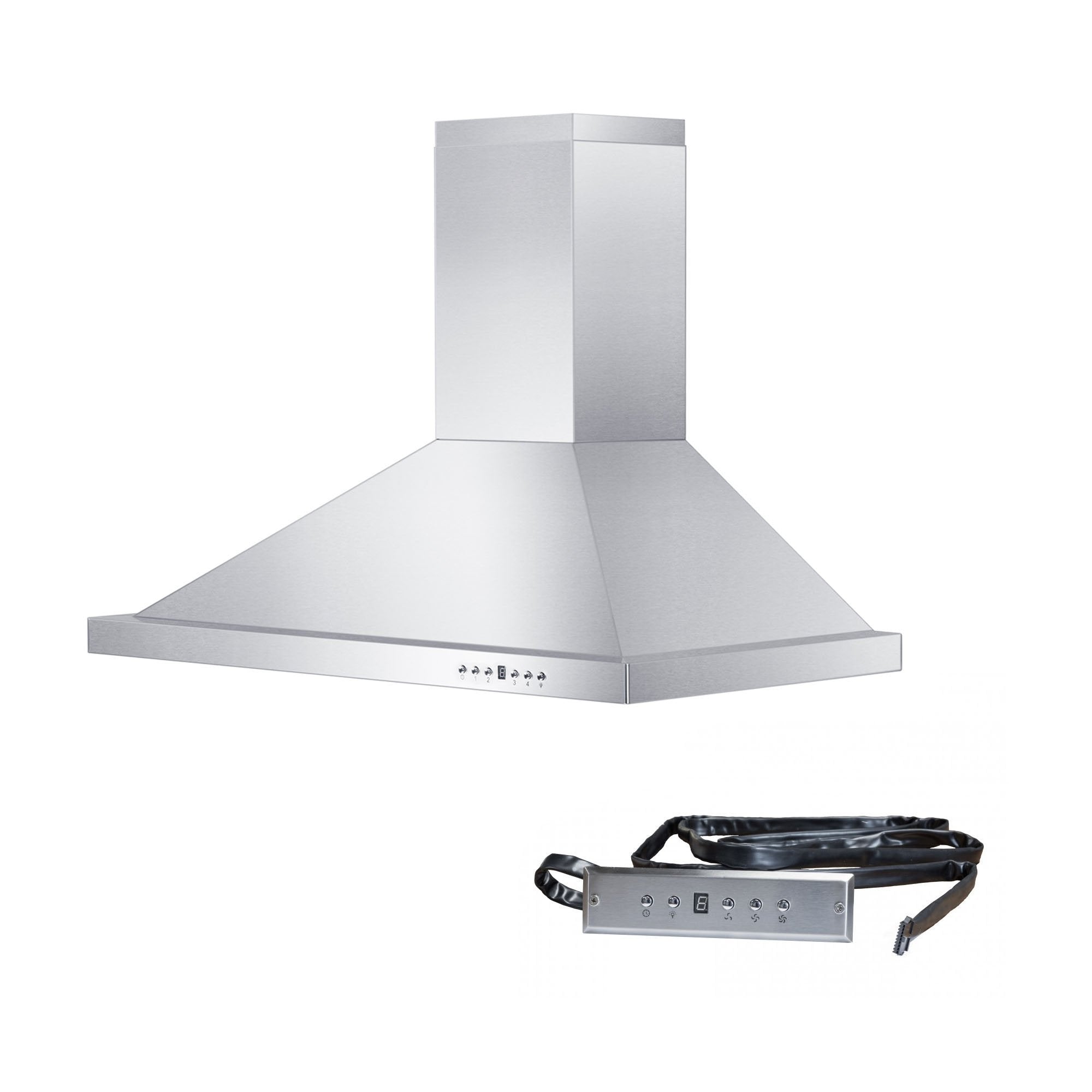

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)

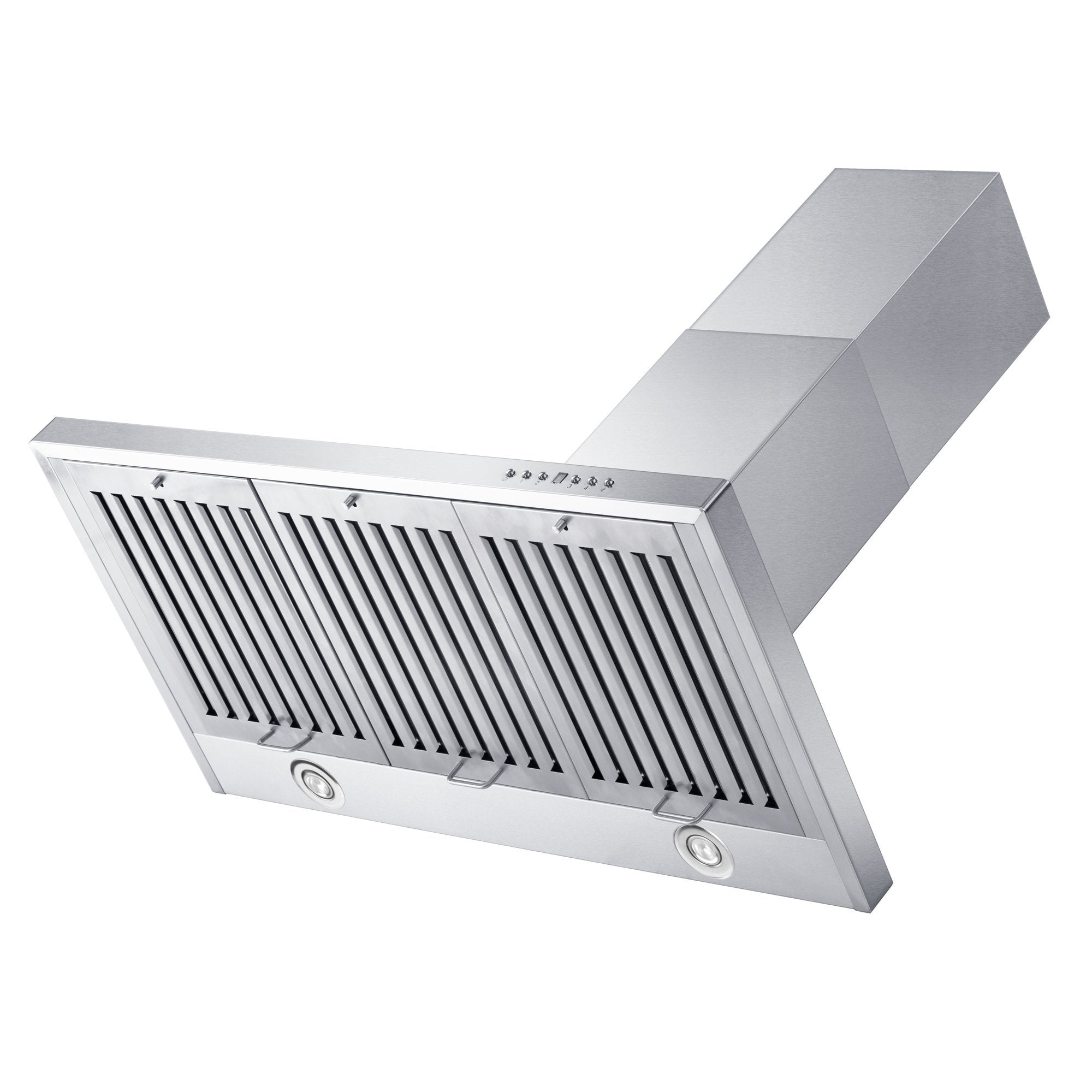

Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Model No. KB-H-30
UPC: 817299020110
Certifications: ETL Listed and ADA Compliant
| Name | Definition | Category | Are We Compliant? |
| CSA General | Testing and Certification Body | Electric | Yes |
| ETL Intertek | Testing and Certification Body | Safety | Yes |
| CSA 22.2. No. 61-08. | CSA Standard Household Cooking Ranges | Electric | Yes |
| UL Listed | Safety | Yes | |
| CA Prop 65 (CEC). | Safe Drinking Water and Toxic Enforcement Act | Water | Yes |
